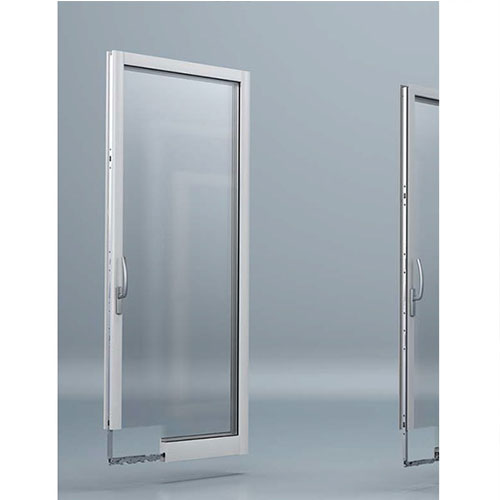

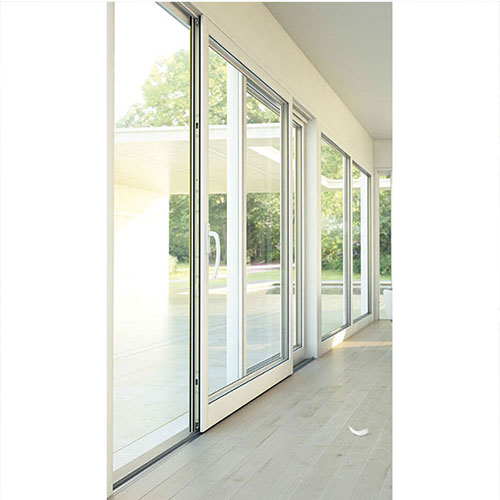

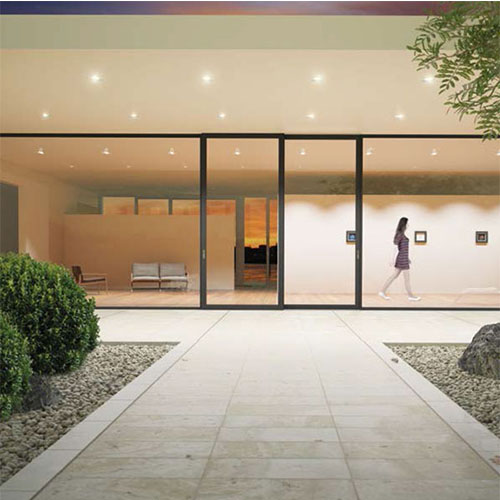

A complete line of tilt and slide fittings for windows and doors that covers ideally the modern architectural demands for big openings but also the functional needs for sashes of big weight because of the use of security glass (bullet proof etc.)
The ATRIUM HS line includes fittings for all PVC and aluminum profiles for doors and windows. A developed electrical system in very small dimensions secures the electrical function of the HS fittings.
Range of application in aluminium systems
HS-330 | HS-440 | HS-200 slim | HS-250 slim | HS-400 slim | HS-120 | ||
Sash width | 720-3235mm | 1310-3235mm | 650-2000mm | 650-2360mm | 1120-3235mm | 650-2000mm | |
Sash height | 1200-3300mm | 1200-3300mm | 1200-2700mm | 1200-2700mm | 1200-2700mm | 1200-2400mm | |
Sash weight | 330 kg | 400 kg | 200 kg | 250 kg | 400 kg | 120 kg | |
Handle center | 37,5 mm | 37,5 mm | 27,5 mm | 27,5 mm | 27,5 mm | 25 mm |
Range of application in PVC systems
ATRIUM HS-300 | ATRIUM HS-200 | |
Sash width | 720-3235mm | 650-2360mm |
Sash height | 1200-2700MM | 1200-2700mm |
Sash weight | 300 kg | 200 kg |
