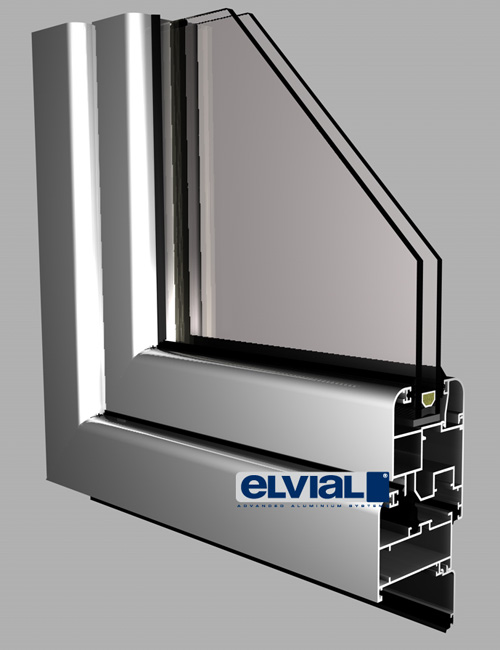

Continuing the tradition, ELVIAL is a leader in the field of innovative aluminum systems design. The 5400 is another member of the family of elvial multilock systems, specially designed to accept a perimeter multiple locking mechanism, providing a permanent solution to the problem of burglary. The elvial multilock systems, which are the spearhead of ELVIAL systems, are the first to be certified by the world-renowned institute, ift Rosenheim, Germany.
The folding reclining series 5400 elvial multilock systems challenges you to invest in the combination of absolute safety, high standards and unique aesthetic result.
Characteristics:
- Certified at LFT Rosenheim in maximum dimensions (width 236cm and height 240cm).
- Combination of functionality and design, along with high performance in waterproofing.
- Waterproof 1050 Pa in single-leaf window with fixed (cyclone 13 Beaufort).
- Increased burglary resistance.
- Sound Insulation Index: Rw = 36 dB with conventional glass 5-12-4.
Dimensions:
Case width 53.6 mm, 62.3 mm, 75 mm, 115 mm and 180 mm
Case height 54.8 mm
Sheet width 61.3 mm
Sheet height 79.9 mm and 101 mm
Maximum glass thickness 40mm
The dimension between the frame and the sheet is 12mm, so that the mechanisms can operate without problems, but also to ensure the safety of the products.
